Features/Advantages
High standard HVAC control applications, wall installation and pipeline installation
High performance capacitive humidity sensor
Accuracy ± 0.2 ℃, ± 2% RH
Wall installation with hidden back outlet, beautiful and dustproof and waterproof requirements

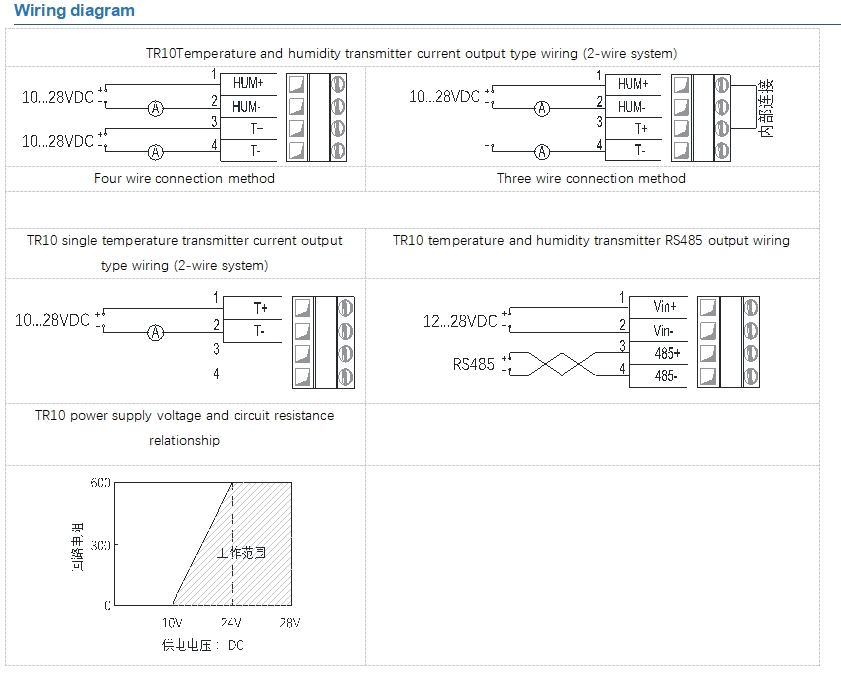

2-wire system with 4-20mA current output
RS485 digital output optional

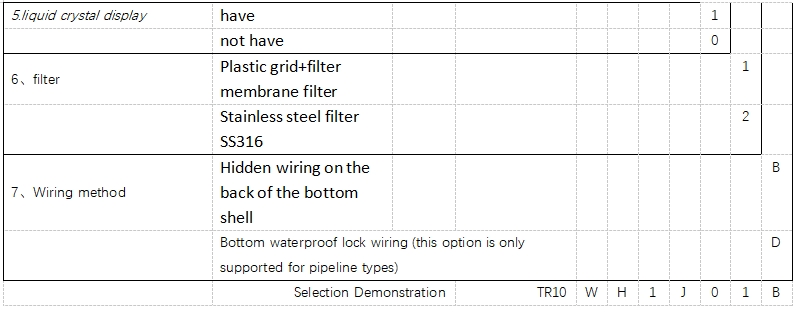

Display selectable options
Support on-site comparison of equipment for calibration
Excellent long-term stability
The TR10 series temperature and humidity transmitter adopts independent platinum resistance temperature measurement and polymer film capacitance humidity measurement, which can achieve accurate relative humidity and temperature measurement in closed-loop control systems such as HVAC and cleanroom applications. The application methods include wall installation and pipeline installation, with an IP65 protection level that can be used in humid areas. Each TR10 series transmitter is calibrated separately at the factory. If necessary, with reference, PC can also be used for on-site comparison and calibration of the transmitter.
The new generation TR10 temperature and humidity transmitter has added a design that can meet the requirements of back hidden lead ports for wall installation, which is more in line with the aesthetic and protective requirements of large-scale modern indoor installation.
Product parameters
Product parameters |
Temperature sensor |
PT1000/PT100 RTD F0.1 IEC 60751 |
Temperature range |
Maximum -40...80 ℃ |
|
Maximum allowable temperature error (20 ℃) |
±0.2 ℃ |
|
Relative humidity sensor |
Large moisture sensitive film capacitor |
|
Humidity range |
0…100 %RH |
|
Maximum allowable humidity error (10... 30 ℃) |
±2 %RH （0…90 %RH） ±3 %RH （90…100 %RH） |
|
Response time (63%) |
30s |
|
Stability of typical HVAC systems |
±0.5%RH/year |
|
Multiple parameter output options available |
Temperature/relative humidity, dew point, absolute humidity, wet bulb temperature, enthalpy value |
|
Measurement range of dew point temperature and wet bulb temperature |
-40...60 ℃ |
|
Measurement range of enthalpy value |
-40...460 kJ/kg |
|
Dew point accuracy (20 ℃) |
±0.7℃ |
|
Wet bulb temperature accuracy (20 ℃) |
±0.5℃ |
|
Enthalpy value (20 ℃) |
±1.6 kJ/kg |
|
input and output |
input |
18...28 VDC <1W |
Voltage Output |
0...5 V/0...10V |
|
Current output |
4...20 mA（2-wire circuit power supply） |
|
loop resistance |
Maximum 600Ω |
|
Digital Output |
RS485 Modbus RTU |
|
Mechanical and environmental parameters |
Shell material |
PC+GF（UL94-V0） |
Shell color |
white |
|
work environment |
-40...60 ℃,0...100 %RH |
|
atmospheric pressure |
700...1200 hpa |
|
maximum wind speed |
30m/s |
|
Storage temperature |
-40...60 ℃ |
|
Filter material |
Plastic grid+filter membrane/stainless steel SS316 |
|
protection grade |
IP65 |
|
Cable lining |
M16*1.5，Wire diameter 4...8mm |
|
Maximum wire diameter |
1.5mm2 |
|
emc standard |
Compliant with EMC standard EN61326-1 for industrial environments |
