Product details

Product Features

•Rich probe support: Temperature and Humidity / Carbon Dioxide / Dew Point / Hydrogen Peroxide, etc.

•50000 groups of offline data buffer

•Equipped with a spare battery, operational for 14 days in case of external power failure.

•Supports POE power supply

•Supports BR-link communication protocol and Borong continuous monitoring system V 5.0, while PLC or other devices can read data in real-time via Modbus TCP

•IP65 waterproof design

The BRCY08E Ethernet Data Logger is suitable for measuring various environmental parameters such as temperature, relative humidity, carbon dioxide/hydrogen peroxide concentration, and dew point in demanding environments. Applicable environments include warehouses, production areas, clean rooms, laboratories, constant temperature boxes, refrigerators, refrigeration and freezing units, and liquid nitrogen boxes with temperatures as low as -196 °C.

units, refrigerated areas, and freezers with temperatures as low as -196 °C.

Support for Ethernet BR-Link protocol and MODBUS TCP.

Supports Ethernet transmission, transmitting data to the server via the IP address in the network. Supports POE power supply, allowing power and data transmission through a single network cable.

Supports Modbus TCP, allowing PLCs and other industrial control devices to obtain data via the Modbus protocol over Ethernet.

Automatic Time Synchronization

The BRCY08E Ethernet Logger has a mechanism for automatic time synchronization, keeping time synchronized with the server at all times. The server only needs to synchronize with standard time, allowing the entire system from continuous monitoring to the acquisition end to maintain synchronization with standard time.

Rich Probe Support

Users can choose the appropriate type of probe and can simultaneously support multiple channels or various probes.

Supported probes: Vaisala HMP Series Temperature and Humidity Probe, GMP Series Carbon Dioxide Probe, DMT Series Dew Point Probe, HPP Series Hydrogen Peroxide Probe; Rotronic Temperature and Humidity Probe; Borong BRHT3 Low Power Temperature Probe.

Multiple probes can be used simultaneously, for example, one carbon dioxide probe and one temperature probe, allowing a wireless data logger to monitor both the carbon dioxide concentration and temperature and humidity parameters in a carbon dioxide incubator. This facilitates installation and reduces usage costs.

Integrity and Continuity of Data

BRCY08E Ethernet Data Logger comes with a built-in cache of 50,000 data sets. In the event of a server connection failure, data will be temporarily stored in the cache and will be transmitted to the server once the network connection is restored.

After the data is uploaded to the server, a backup of the data is still retained in the data logger. If needed, it can be connected to a computer via a USB dedicated tool (account encryption verification required) to export the corresponding time period data, retaining the latest 5 sets of data.

The spare battery is designed to work for 14 days after a power outage, ensuring data integrity.

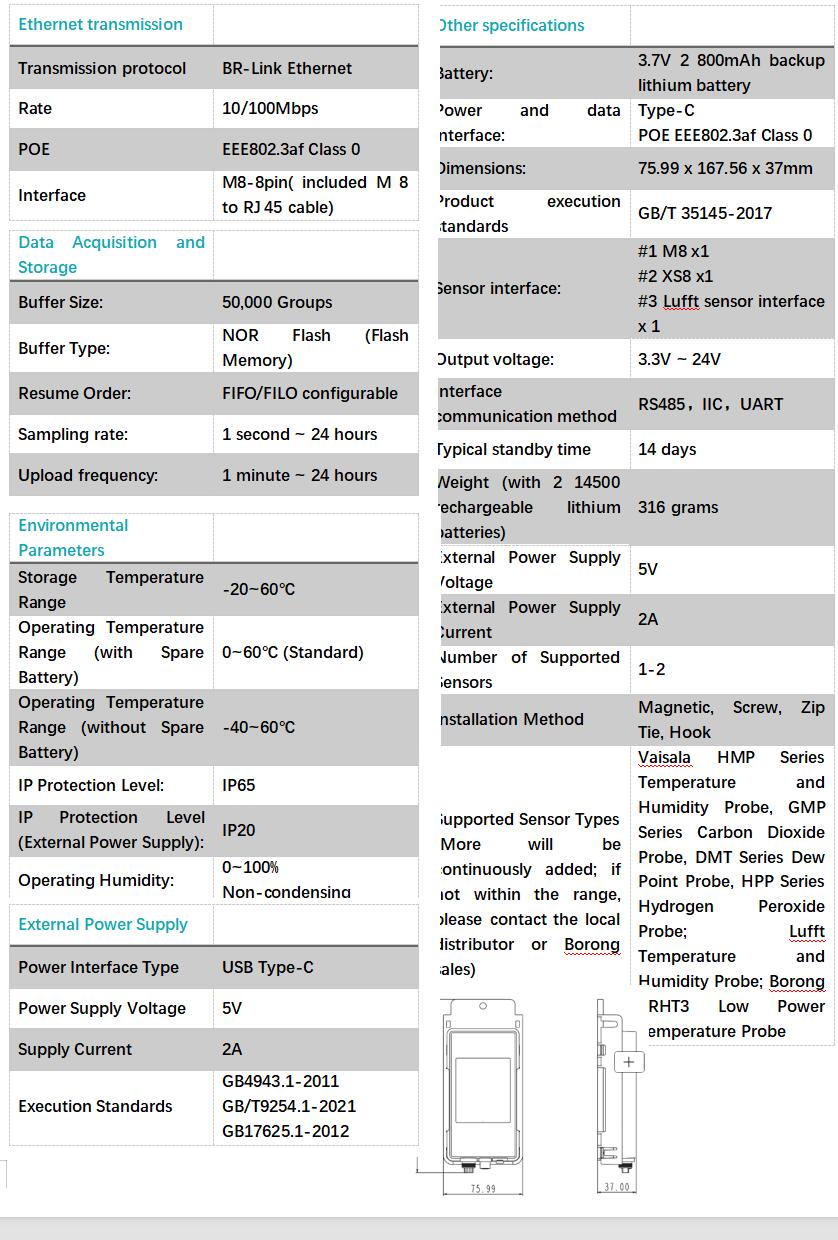

Technical specifications
