Product Name |
Magnetic Door Sensor |
Model |
Hyperwsn-M40 (Abbreviated as M40) |

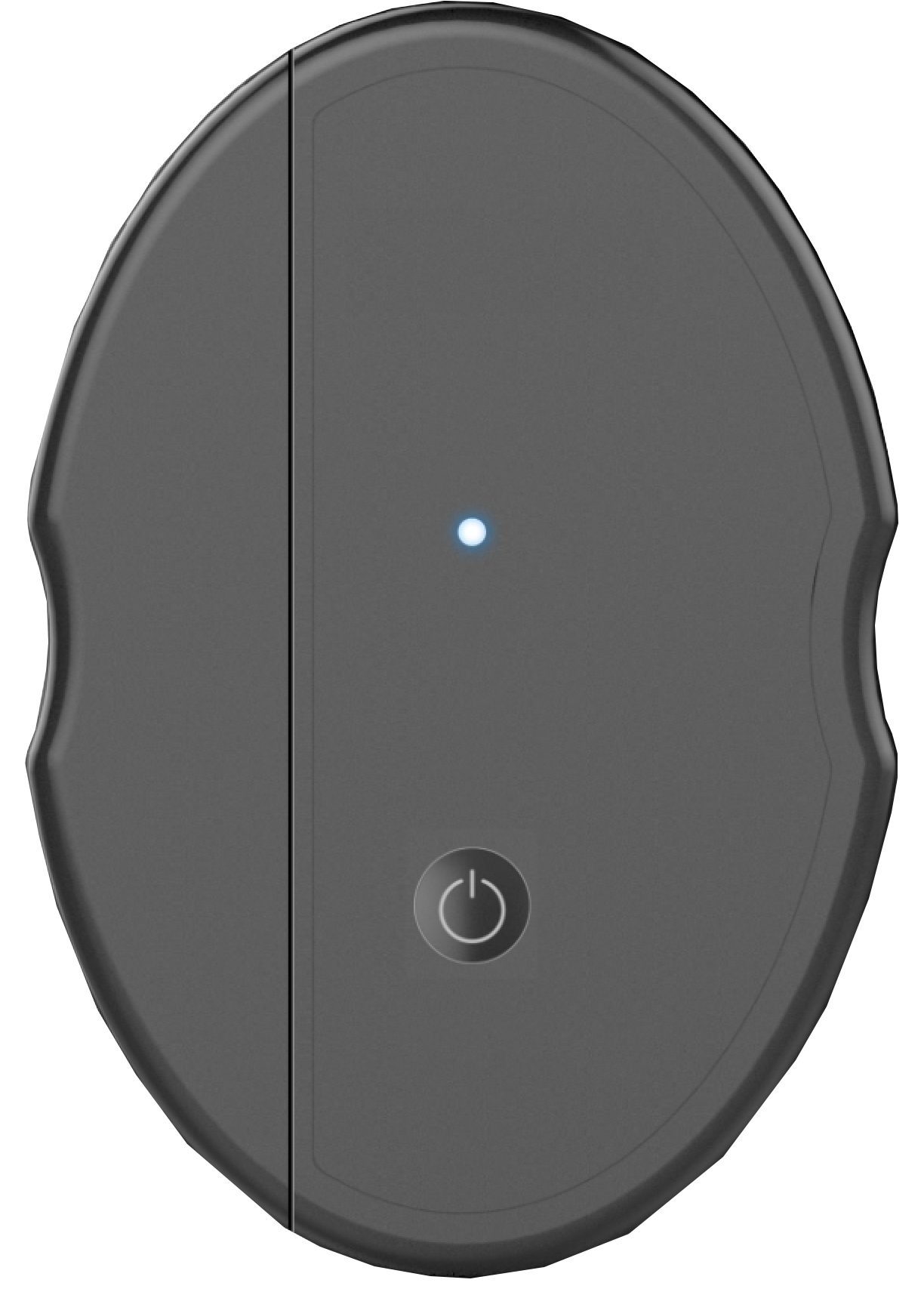

Image |
|
Hardware Parameters and Functional Description | |
Dimensions |
71.0mm*48.6mm*13.8mm |
Material/Housing |
PC-ABS Engineering Plastic |
Antenna |
Built-in |
Sampling Frequency |
30s ~ 60min (Default: 5min①) |
Operating Temperature |
-20℃ ~ +60℃ / 0~90%RH (Non-condensing) |
Storage Capacity |
50,000 sets② |
Battery Model |
CR2450HR Coin Cell |
Battery Capacity |
550mAh |
Battery Life④ |
12 months (at 0℃) |
Battery Replacement |
Replaceable |
Protection Level |
IP68 |
Alarm Device |
—— |
Wireless Transmission Parameters | |
Transmission Method |
HyperWSN |
Communication Rate |
5-50Kbps |
Supported Frequency Band |
433MHz |
Transmission Distance |
500m③ |
Standby Power Consumption |
<3μA |
Receiver Sensitivity |
-105dBm |
Default Working Cycle |
5min(default) |
① The default data sampling interval is 5 minutes. All related data in the table above are based on the default sampling interval.
② Under the default sampling interval, the device can operate independently for 180 days when data cannot be uploaded.
③ Line-of-sight distance.
④ Battery life is based on standard working mode. It may decrease under conditions of heavy data storage or poor signal.
