Continuous Monitoring System V5.0

Product details

Product Features

  • A system that continuously monitors various environmental and system parameters, including temperature, humidity, gas concentration, pressure difference, and various system data

  • Real time alarm for over limit data, supporting WeChat, SMS, phone, email, sound and light alarm, webpage pop ups, etc.

  • Flexible alarm strategy: Threshold alarms, the number of alarm notifications, and multi-level notification logic can be included in the plan to adapt to shift changes and ensure alarm reception.

  • Multiple mechanisms ensure data integrity, including offline caching, data backup, dual machine hot backup, load balancing, etc. for collection and gateway at all levels

The Biorong Continuous Monitoring System V5.0 supports users to connect to the network using a combination of wired and wireless data collection devices, which can be implemented locally or on a cloud platform. It supports small installations of one or two monitoring points, as well as large systems that monitor tens of thousands of monitoring points. Designed for monitoring critical equipment, data integrity and compliance are ensured through audit trails, departmental and account permission controls, data encryption, and authorization levels that comply with regulatory requirements, as well as electronic signatures.

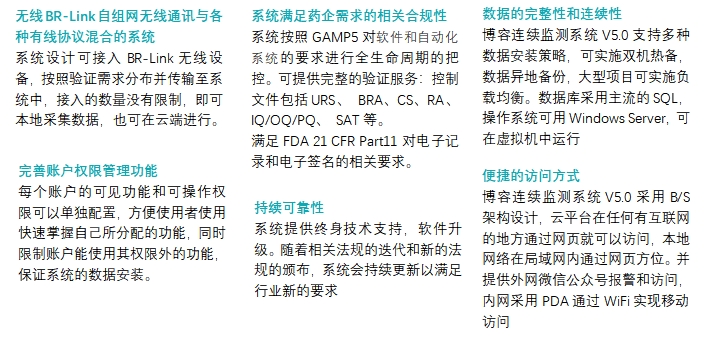

Radio BR-Link A system combining ad hoc wireless communication and various wired protocols

System design BR-Link The wireless device can be accessed, distributed according to verification needs, transmitted to the system, and the number of accesses

Systems compliance compliance to meet the needs of pharmaceutical companies

System GAMP 5 Control the whole life cycle for software and automated system requirements. Complete verification service can be provided: control

Data integrity and continuity

Continuous monitoring system V 5.0 Support for a variety of data installation strategies, dual heat installations, data remote backups, and large projects can perform load balancing. Database is mainstream SQL

Improving account authority management

The visible and operational privileges of each account can be placed independently, allowing users to quickly understand the functions they have allocated, and at the same time limit that the account can use its privileged functions and guarantee system data installation.

Continuous reliability

The system provides lifetime technical support and provides software upgrades. With the repetition of relevant laws and promulgation of new laws, the system continues to be updated to meet the industry's new requirements

Convenient access method

Continuous monitoring system V 5.0 は B/S Architecture design and cloud platform is a place in the Internet Web The local network can be accessed through the page and the local network is located in the local area network Web Pass page orientation. The network also provides an alarm and access to the public number PDA Adopt WiFi Achieving mobile access through


Wireless transmission scheme


BRCY 01 Collection of

Air temperature

BRCY 02  Extended Wallpapers Collection

Verification and monitoring of air temperature humidity

BRCY 06  Wireless data recorder

Normal temperature and humidity PT 100 Probe

BRCY 08  Wireless data recorder

Support various industrial products such as Visayas and rookies, temperature and humidity, carbon dioxide, dew point and hydrogen peroxide

BRCD 01  Overfunction collector

RS232/RS 485/MODBUS  Multiple third party data collection

BRWY01

Implementation of an internal implementation of a wireless LAN architecture with a wireless router

Cloud 4 G  Or Y sanetto

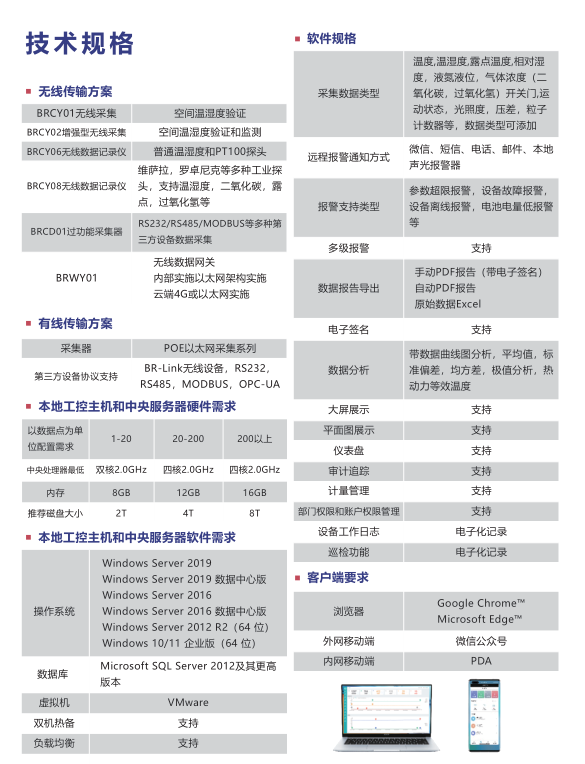

Software specification


Data type

Data types can be added, such as temperature, temperature, humidity, dew point temperature, relative humidity, liquid nitrogen level, gas concentration (carbon dioxide, hydrogen peroxide) switch door, movement state, illuminance, pressure difference, particle counter

Remote alarm notification method

WeChat、SMS、 Phone, email and local voice alarms

Alarm support type

Parameter overrun alarm, equipment failure alarm, equipment offline alarm, battery power low alarm, etc

Simply

Support

Export data report

Manual PDF Automatic report PDF Report

Raw data Excel

Electronic signature

Support

Data analysis

Graph analysis, mean value, standard deviation, average variance, extreme value analysis, thermal power equivalent temperature

Large screen display

Support

A plan view

Support

Kaiiki

Support

Audit trail

Support

Meter management

Support

Department authority and account authority management

Support

Device work log

Electronic records

Cyclic inspection function

Electronic records

Wire transmission method


Collector

POE Ethernet Collection Series

Support for third party device protocols

BR-Link Wireless device RS232,RS485,MODBUS,OPC-UA

Hardware requirements for local and local servers

The demand

1-20

20-200

200以上

Minimizing central processors

Dual core2.0GHz

Core core2.0GHz

Core core3.0GHz

Memory

8GB

12GB

16GB

Recommended disk size

2T

4T

8T

Requirements for host control host and central server software

Operating system

Windows Server 2019

Windows Server 2019 Data center versionWindows Server 2016

Windows Server 2016 Data center version

Windows Server 2012 R2 (64 bits

Windows 10/11 Enterprise version (64 bits)

 Database

Microsoft SQL Server 2012 And its updated version

Virtual machine

VMware

Dual hot spare

Support

Load balancing

Support

Client requirements


Torrent Explorer

Google Chrome™

Microsoft Edge™

Outer network moving end

Wey chat official account

Intranet Mobile

PDA
